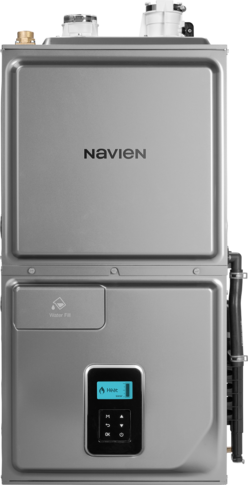

NPF700-100U5CH premium features and benefits
2" PVC venting compatibility.
Vent Installation Detector (VID) for added safety during installation and maintenance.
The hydronic coil transfers heat from the water into the airstream at temperatures up to150°F.
Innovative stainless steel combustion heat exchanger located out of the airstream.
EZ-Nav user-friendly backlit interface. Provides easy access, built-in set-up and diagnostic software.
High efficiency ECM variable speed blower motor.
NPF700-100U5CH QuickFacts
53.3cm W x 87.6cm H x 78.7cm D (21.0" W x 34.5" H x 31.0" D)
| Model | NPF700-100U5CH | |
|---|---|---|
| Heating (gas input) natural/propane gas | 14,000 - 100,000 BTU/h | |
| AFUE (%) | 97.0 | |
| Certified temperature rise range | Max heat | 25 - 42 °C (45 - 75 °F rise) |
| Min heat | 6 - 22 °C (10 - 40 °F rise) | |
| Burner Control | Modulating | |
Certified External Static Pressure
- Heating
- 0.1 - 1 " WC
- Cooling
- 0.1 - 1 " WC
Airflow delivery range [CFM] (Rated ESP)
- Max heat
- 1200 - 2000
- Min heat
- 400 - 2000
- Cooling
- 2000
Nominal cooling capacity (TON)
- @400CFM
- 2.0 - 5.0
- @350CFM
- 2.0 - 5.5
Circulator blower
- DxW
- 30.5cm D x 30.5cm W (12.0" D x 12.0" W)
- Horsepower
- 1.0
- Motor full load amps
- 11.0
- Motor speed & type
- Variable, Electronically Commutated Motor (ECM)
| Item | NPF700-100U5CH | |
|---|---|---|
| Gas input | Space heating | 14,000 - 100,000 BTU/h |
| Dimensions | 53.3cm W x 87.6cm H x 78.7cm D (21.0" W x 34.5" H x 31.0" D) | |
| Shipping weight | 76 kg (167.6 lbs) | |
| Installation location | Upflow | |
| Venting type | Forced draft direct vent or non-direct vent | |
| Max Vent Length | 2" - 70 ft.
| |
| Ignition | Electronic ignition | |
| Natural gas supply pressure (from source) | 3.5 " WC to 10.5 " WC | |
| Propane gas supply pressure (from source) | 8 " WC to 13 " WC | |
| Natural gas manifold pressure (min-max) | -0.01 " WC to -0.02 " WC | |
| Propane gas manifold pressure (min-max) | -0.01 " WC to -0.02 " WC | |
| Connection sizes | Gas inlet | 1/2" NPT |
| Cold water inlet | 1/4" NPT | |
| Condensate outlet | 3/4" NPT | |
| Power supply | Main supply | 120V AC, 60 Hz |
| Max current | 14.3 A | |
| Circuit Breaker Amps | 20 | |
| Wire Size | 12 AWG | |
| Materials | Casing | Corrosion resistant baked on pre-painted steel |
| Combustion heat exchanger | Stainless Steel | |
| Hydronic heat exchanger | Copper & Aluminum | |
| Venting | Exhaust | 2" or 3" PVC, CPVC, approved PP 2" or 3" special gas vent type BH (Class III, A/B/C) 2" or 3" SS |
| Intake | 2" or 3" PVC, CPVC, PP 2" or 3" special gas vent type BH (Class III, A/B/C) 2" or 3" SS | |
| Vent clearances | 0" to combustibles | |
| Safety Devices | Flame rod, ignition operation detector, water temperature high limit switch, high limit sensor for exhaust temperature, Vent Installation Detector (VID), water level sensor, burner high limit sensor, Pressure Relief Valve (PRV), leak sensor | |
Navien reserves the right to change specifications at any time without prior notice.
NPF Videos
NPF700-100U5CH FAQs
What are the advantages of a hydronic forced-air furnace?
One of the quietest furnaces you can buy. The NPF is also energy efficient burning gas at 97% efficiency and using high efficiency electric motors. The NPF is also Ultra-low NOx compliant so it is a good steward for the environment minimizing the emissions that can contribute to ozone and acid rain. The EZ-Nav interface allows the system to be configured quickly and precisely meeting the specific comfort needs of any home.
What is an upflow furnace?
An upflow furnace is one that discharges the conditioned air vertically, out of the top of the unit, into a discharge plenum which connects it to the ductwork which then distributes the conditioned air throughout the home.
How long does a hydro air furnace last?
Same as a traditional residential gas furnace, when properly maintained, atleast 20 years
Does hydronic forced-air heating cause humidity?
The hydro-furnace does not add humidity to the conditioned space.
As a homeowner, if I have an issue with my unit can I call technical support for troubleshooting help?
If you have an issue with your Hydro-furnace, please contact the original installation contractor or you can go to the Navien website (www.navieninc.com) to locate your nearest qualified Navien contractor.
Does Navien have field technicians available to service my hydro-furnace?
Your hydro-furnace should be serviced or maintained by your qualified local installing or servicing contractor.
Can I get replacement parts shipped to me?
Navien service parts are only available to qualified contractors through participating Navien distributors.
